Fimak
FKD 250

FKD 250®

Automatic Tilting Lift Machine, 250 kg dough capacity.

FKD 250

FKD 250

Automatic Tilting Lift Machine, works compatible with the removable bowl of Fimak Automatic Spiral Mixer with Mobil Bowl. It provides the mass production by transfering the dough to the volumetric dough divider machine untouched

Technical Specifications

FKD 250 specifications

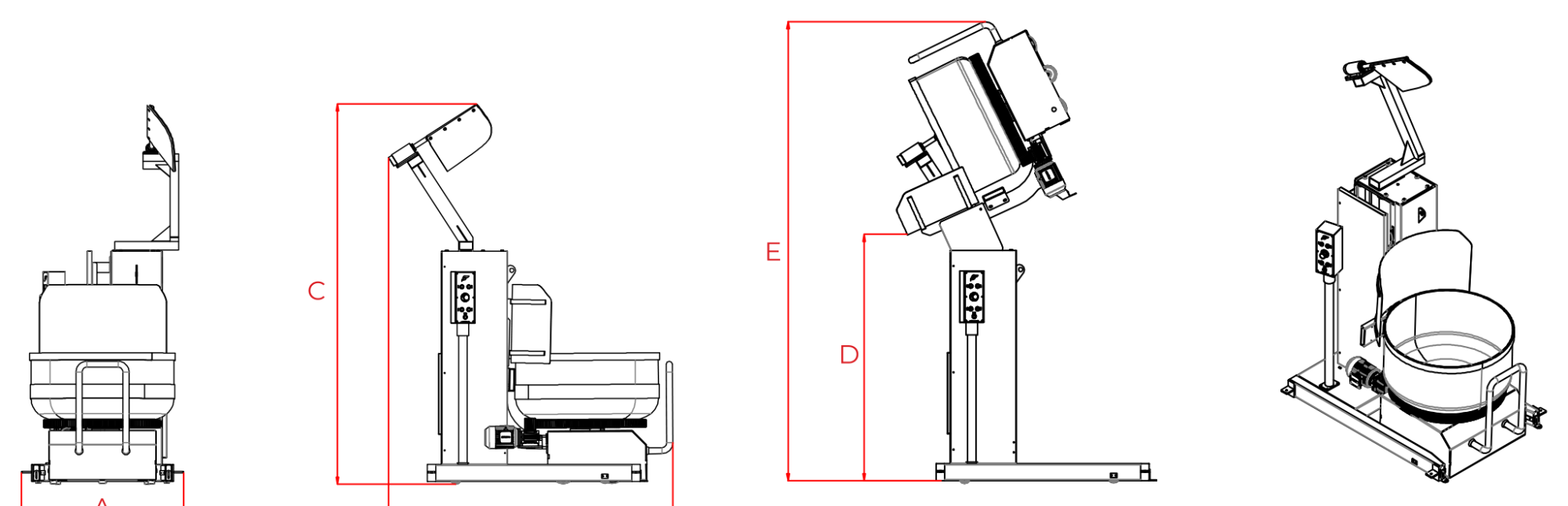

MODEL FKD-250 FKD-4000
Dough Capacity (kg) 250
Bowl Dimensions Ø x h (mm) (D x E) 1000x470 250
Lifting Capacity (kg) 600 250
Width - A (mm) 1150 250
Depth - B (mm) 1650 250
Height - C (mm) 1620 250
Dough Discharge Height - D (mm) 1760 250
Max. Height - E (mm) 3220 250
Electrical Power (kW) 1.1 250
Machine Weight (kg) 574 250
Electrical Connection 3P + N + PE
Dough Discharge Angle (degrees) 30° 25°
Mobile Trolley (Bowl) Lifting Distance (Stroke) - S (mm) 550 (Lifting) - 450 (Tilting) 2900
Lifting Speed (mm/min) 1000 5750
Lifting System Hydraulic System Chain / Gear Mechanism
Lifting Motor Power and Speed (kW (hp) - rpm) 1.1 kW (1.5 hp) 1410 rpm 2.2 kW (3 hp) 900 rpm
Bowl Tilting Motor Power and Speed (kW (hp) - rpm) - 0.55 kW (1 hp)
Locking Mechanism (Safety Lock) Hydraulic System Mechanical System
Scraper System - Pneumatic Cylinder Assisted
Scraper System Required Air Pressure (bar) - 6
