Fimak
FSET Triad

FSET Triad®

Convection Oven, 3 trays.

FSET Triad

FSET Triad

Fset overns which are sources of tastes which are finger licking good are indispensable for narrow spaces. It does not compromise from delicious cooking ability in addition to its small sizes. Thereby it determines new measures in use, palatal delight and space management. Heat accumulation glass is prevented by innovative heat insulation and high technology which is used in Fset ovens. Thereby heat and energy efficiency is maintained inside oven and users are protected against burns. It provides unique steaming experience and it is operated different from ordinary steaming system. It spread water inside oven as particles and provides steam and humidifying by oven heat. Fset series ovens which are delivered together with mobile tank rises the practicality concept at top level. Ovens which do not require water connection due to its 2 liter water tank( except washing mode) eliminates the requirement of water installations. Works performed by it are great and area covered by it is small. Fset series ovens perform great works with their small sizes. Thereby they can be used easily in cafes, delicatessen, bistro, bakery oven, and many other places.

Teknik Özellikler

FSET Triad specifications
MODEL FSET-3 TRİAD FSET-4 DİLAS FSET- DİLAS PLUS
Pişirme Alanı (m²) 0,72 0,96 1,2
Tepsi Sayısı (Adet) 3 4 5 - 6
Tepsi Ebadı (mm) 440 x 350 400 x 600 400 x 600
Max. Sıcaklık (°C) 250
Genişlik - A (mm) 600 760 800
Derinlik - B (mm)) 615 760 825
Yükseklik - C (mm) 610 780 910
Max. Derinlik - D (mm) 700 820 920
Elektrik Gücü (kW) 3,2 7,8 9,3
Ort. Yakıt Tüketimi (8 saat) (kw/h) 2 5 5,8
Fırın Ağırlığı (kg) 60 95 107
Enerji Kaynakları Elektrik
Kontrol Sistemi Dokunmatik
Elektrik Bağlantısı Kablosu 5 x 2,5 mm² 3 x 2,5 mm² 5 x 2,5 mm²

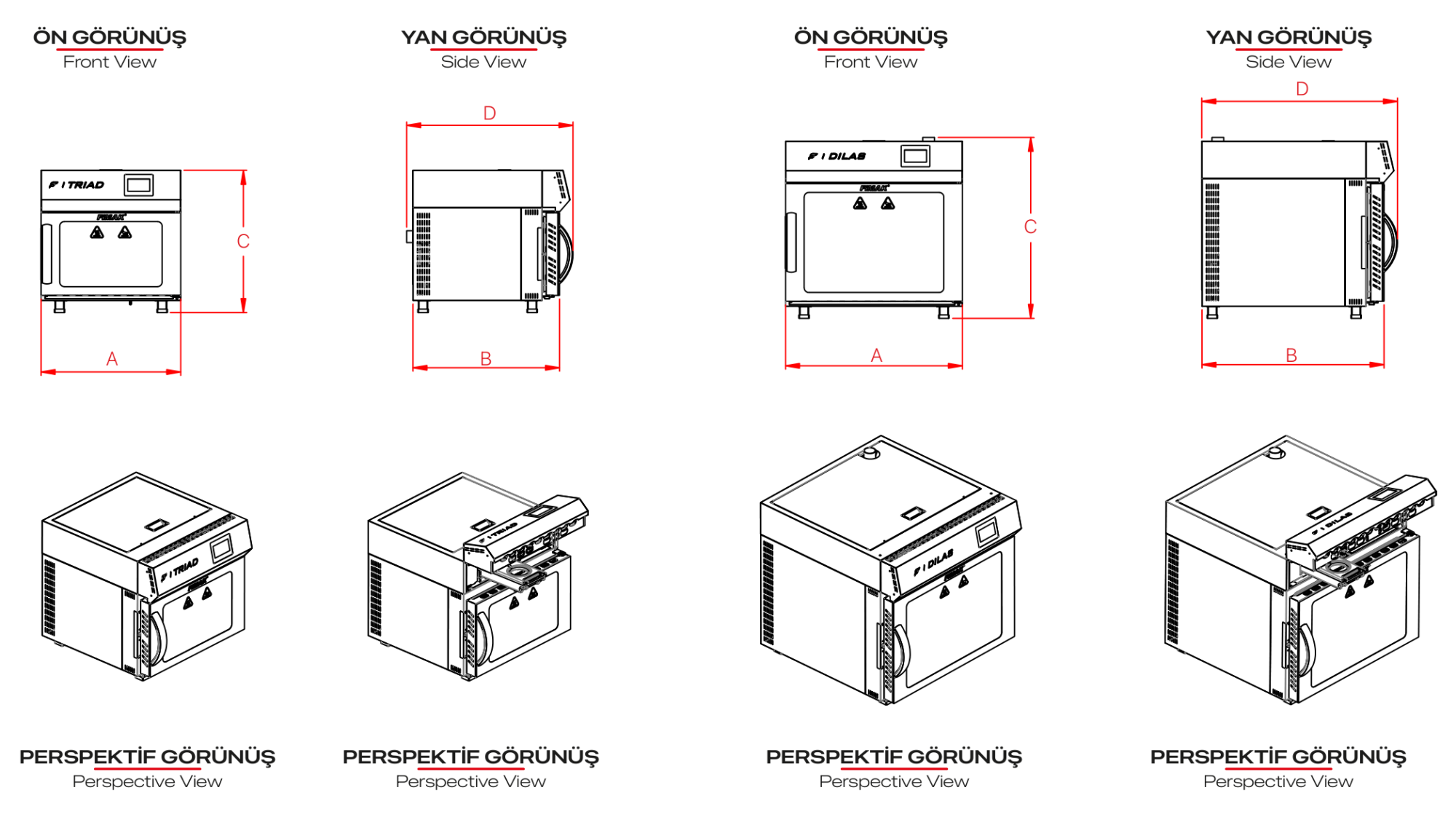

Technical Drawing and Installation Dimensions

Tap the drawing to enlarge
